Product type：TFT Display
Show contents：800x480

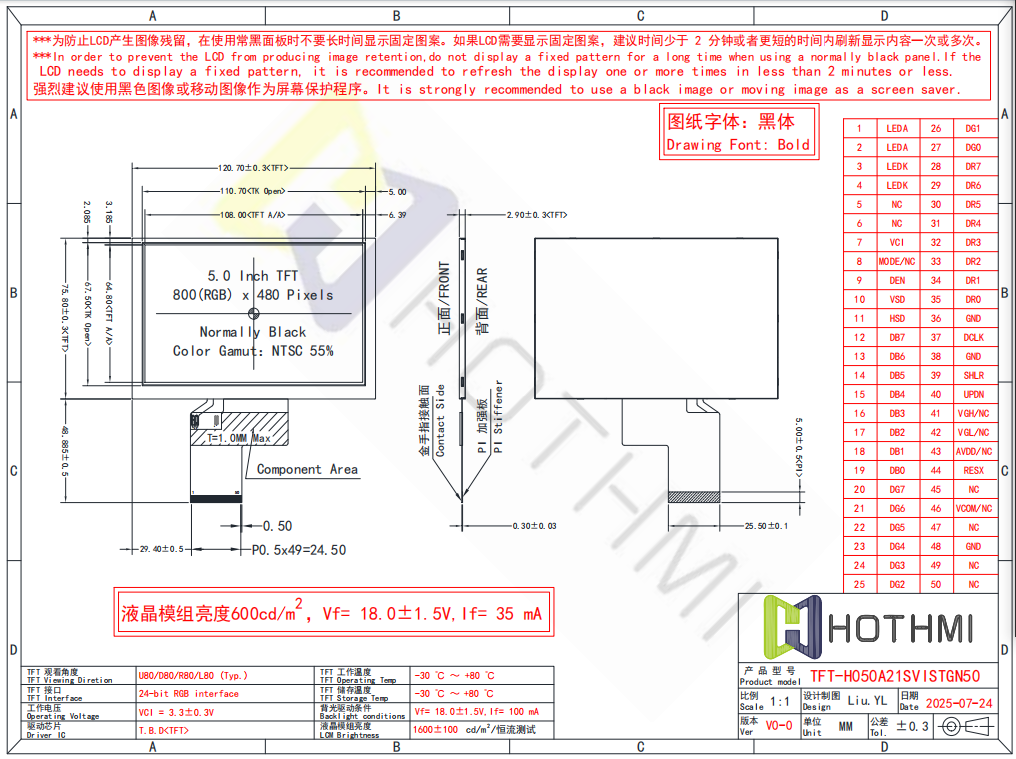

Outline size(mm) ：120.7x75.8x2.9
Size of View Window(mm)：5.0
Display size(mm) ：5.0
Effective size(mm)：108.0x64.8
Product application：technical equipment, office equipment, access control
Visual angle：IPS
Backlight type or brightness：1600cd/m2
Connection PIN Number：50 PIN
Interface mode：RGB
Special instructions：Anti-static ESD 8KV
Working temperature：-30~80℃
Power supply voltage：+3.3V

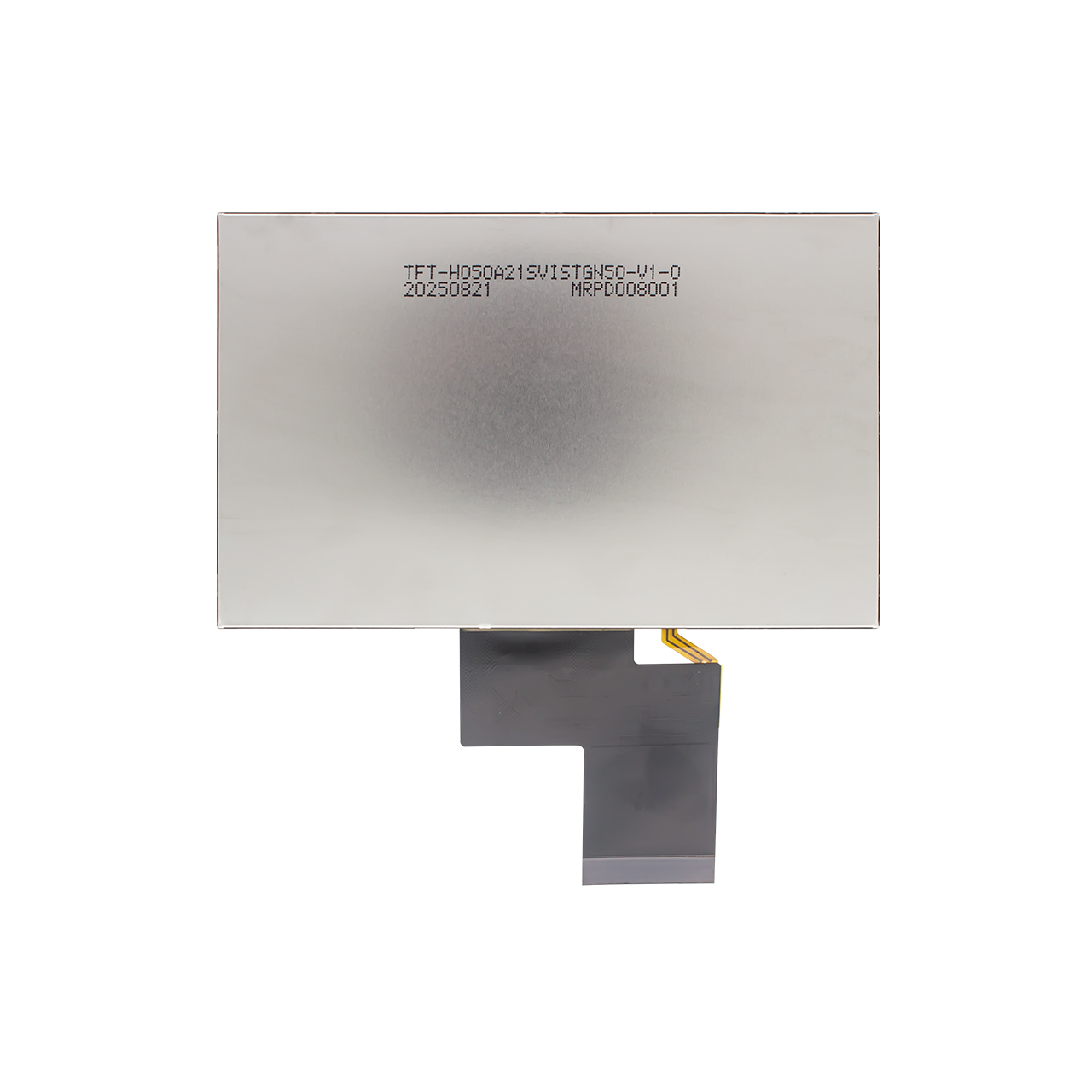

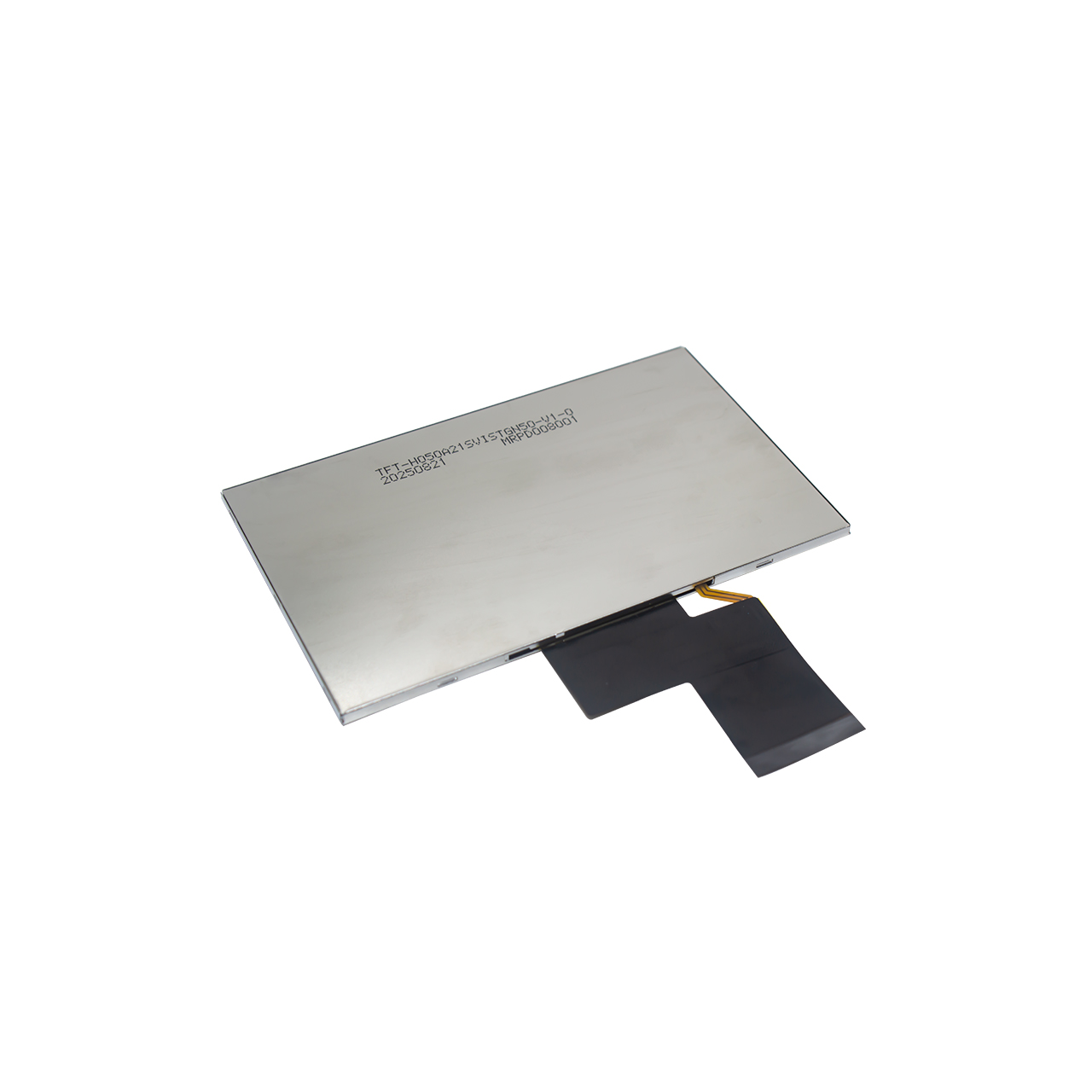

Explore our premium 5 Inch RGB TFT LCD display, engineered for demanding industrial applications. This sunlight-readable display boasts an exceptional 1600 cd/m2 high brightness and IPS full viewing angle technology, ensuring perfect visibility even in direct sunlight and from wide angles.
The module features a 5 Inch TFT LCD with a sharp pixel resolution . Its robust RGB interface with 50-pin pinout ensures reliable data transmission. Designed for durability, it operates in a wide temperature range of -30°C to 80°C and offers high ESD protection of 8kV.
Equipped with a capacitive touchscreen, it provides intuitive user interaction. With a slim profile of 2.9mm and a 3.3V supply voltage, this 5 Inch TFT LCD Display is the ideal embedded display solution for industrial controllers, HMIs, and outdoor equipment requiring superior performance and reliability.
