Product type：TFT
Show contents：480x800

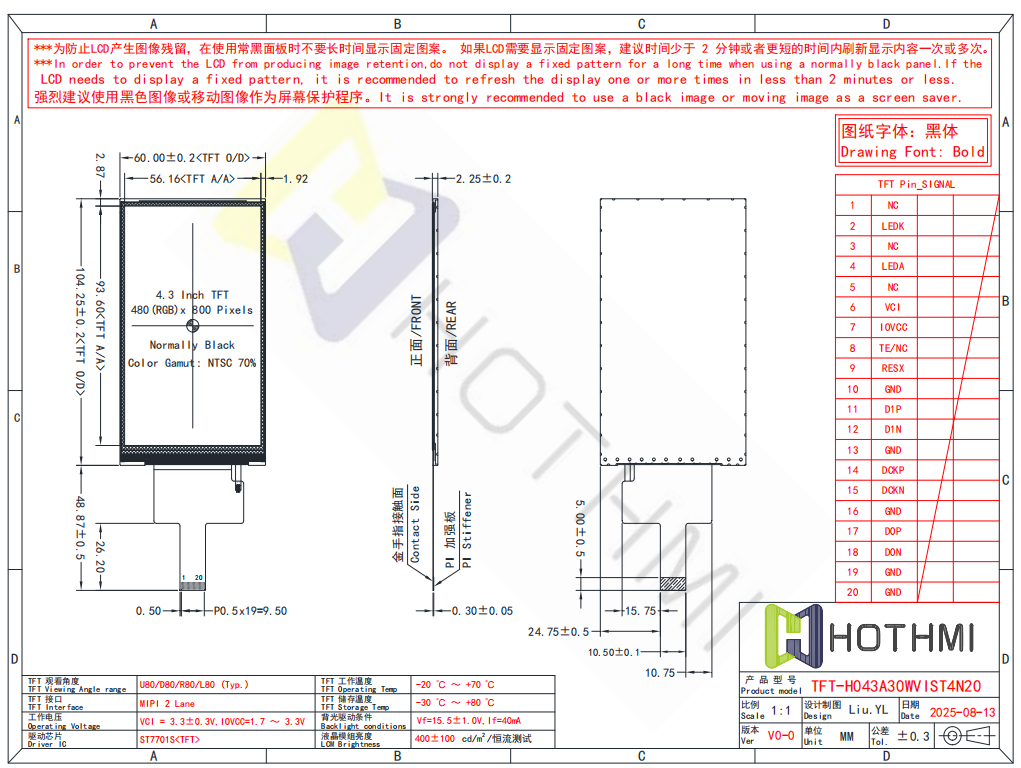

Outline size(mm) ：60.0x104.25x2.25
Size of View Window(mm)：4.3
Display size(mm) ：4.3
Effective size(mm)：56.16x93.60
Product application：handheld devices, small speakers, small home appliances ? Viewing angle: IPS full viewing angle
Backlight type or brightness：56.16x93.60
Interface mode：MIPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST7701S

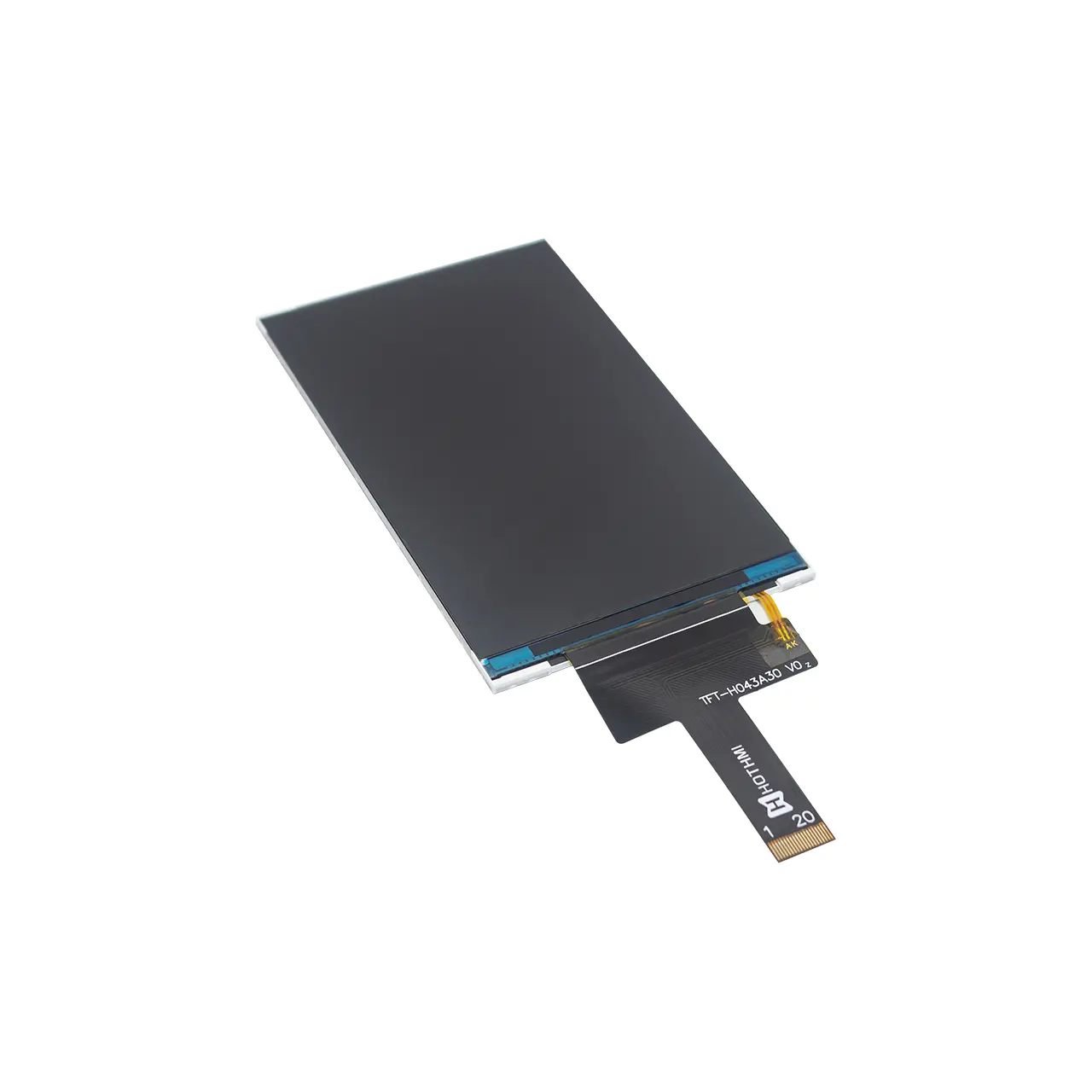

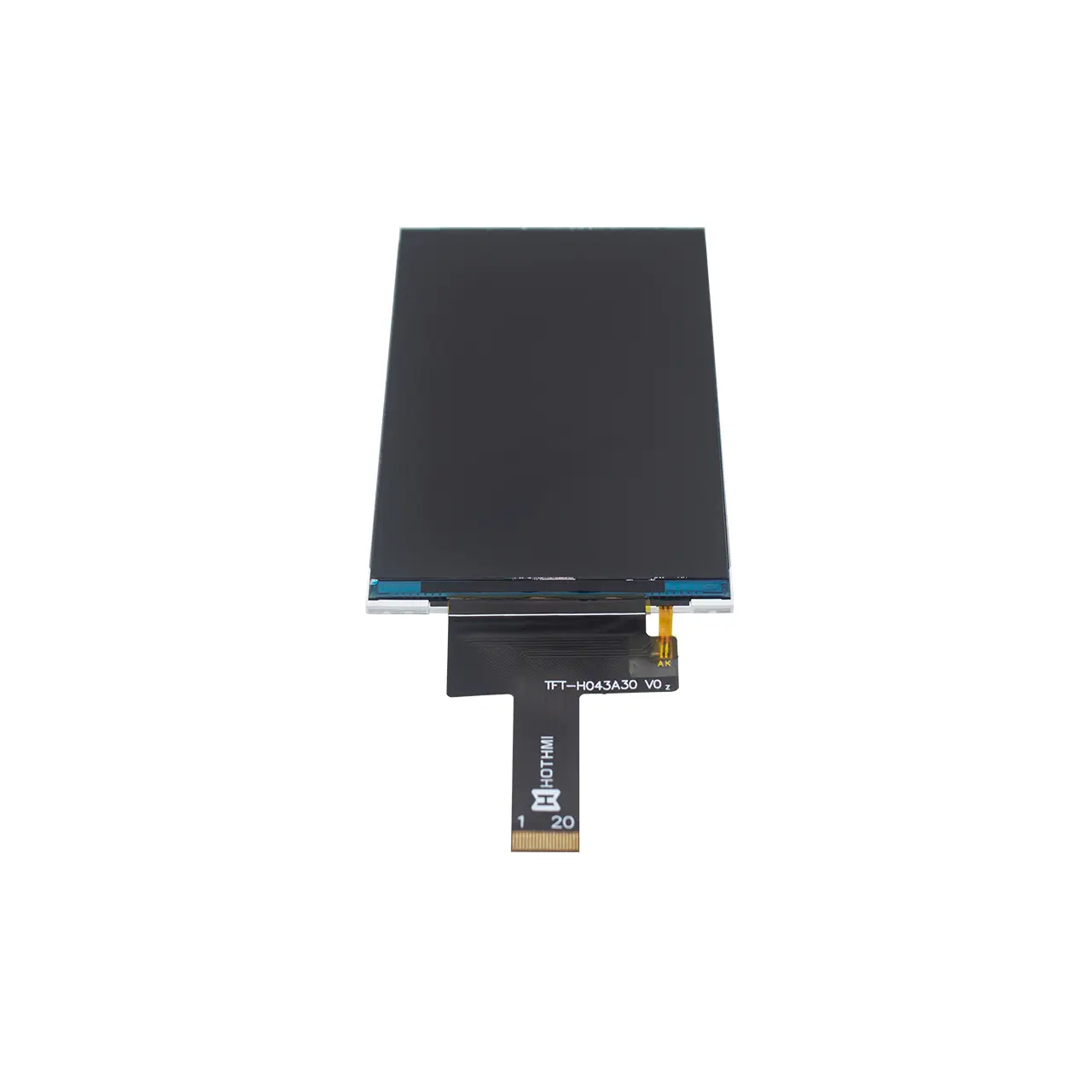

This 4.3-inch TFT LCD display module is engineered for high-performance industrial applications. With a resolution of 480×800 pixels and an advanced IPS panel, it delivers wide viewing angles and consistent color reproduction, making it ideal for industrial control systems, HMI interfaces, and embedded monitoring equipment.
Featuring a high brightness of 400 cd/m2, the display ensures excellent readability even in brightly lit environments. Its robust design supports an operating temperature range of -20°C to 70°C, ensuring reliable performance under demanding conditions. The module incorporates ESD protection up to 8kV, enhancing durability in sensitive industrial settings.
The compact physical dimensions and an active area allow for efficient integration into space-constrained applications. It utilizes a modern MIPI interface with a 30-pin connector and is powered by a 3.3V supply voltage. The display is driven by the ST7701S IC, ensuring stable signal processing and smooth image output.
As a trusted TFT LCD manufacturer, we provide high-quality, reliable display solutions tailored for industrial use. This 4.3" TFT display combines durability, clarity, and versatile compatibility, making it an excellent choice for professional industrial displays.
